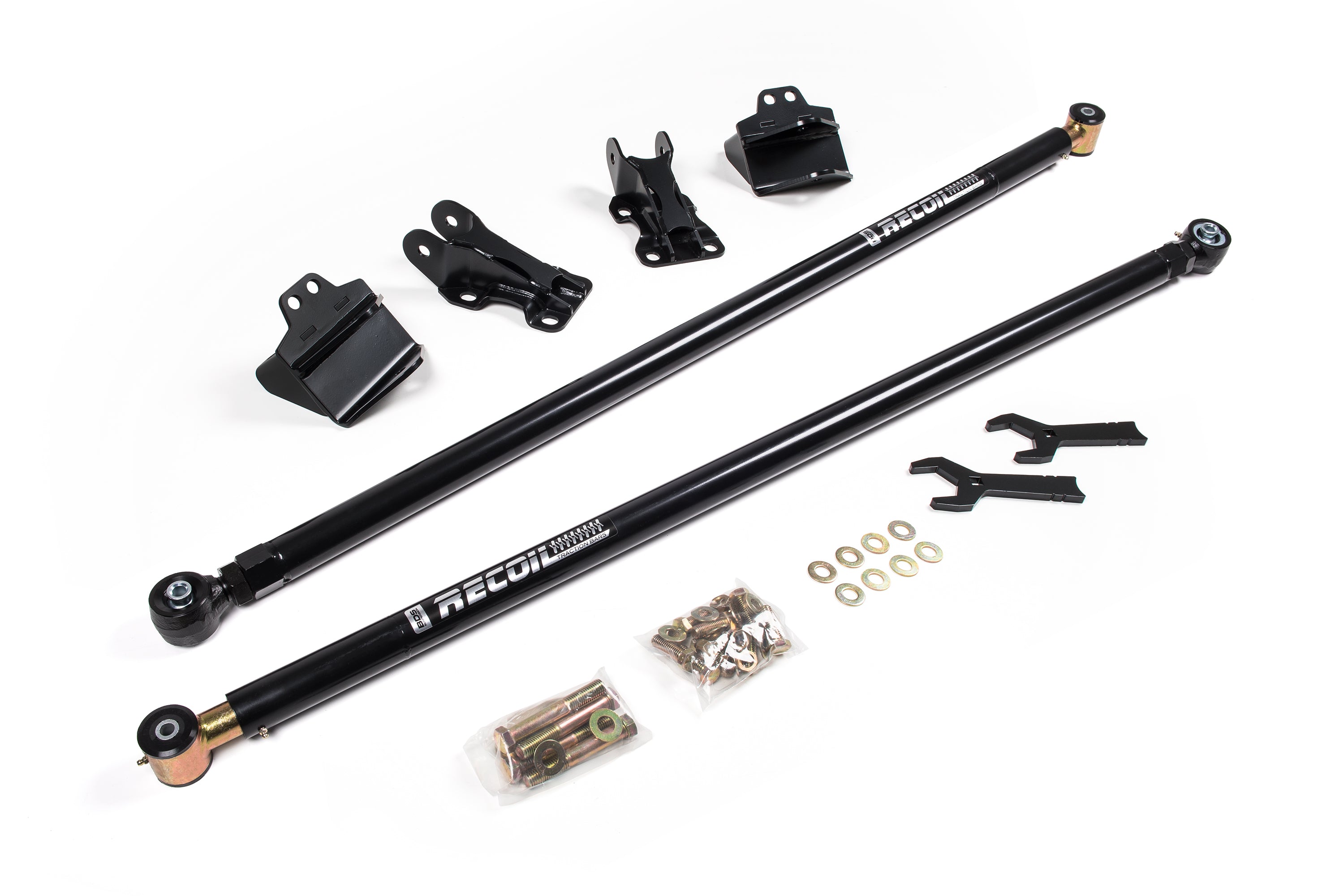

Recoil Traction Bar Kit | Chevy Silverado And GMC Sierra 2500 / 3500 HD (20-24) Long Bed

Brand: BDS
SKU: BDS2314
Kit Component List

×
$969.90
Subtotal: $969.90

I have read the Important Notes and Verified my Vehicle Fitment

Recoil Traction Bar Kit | Chevy Silverado And GMC Sierra 2500 / 3500 HD (20-24) Long Bed

Recoil Traction Bar Kit | Chevy Silverado And GMC Sierra 2500 / 3500 HD (20-24) Long Bed

$969.90

Recoil Traction Bar Kit | Chevy Silverado And GMC Sierra 2500 / 3500 HD (20-24) Long Bed

$969.90

Improve traction on your 2020-2023 Chevy Silverado or GMC Sierra 2500 HD/3500 HD without limiting wheel travel with a BDS Recoil Traction Bar Mounting Kit, made with heavy wall construction and internal compression springs that can be loaded or unloaded while installed on the vehicle to control axle wrap. Full float design for bind-free performance and can be installed with a range of lift heights.


Fabricated from 2-inch OD x 3/16-inch wall steel tubing with a threaded bung welded in toward the axle and a CNC-machined end at the frame. Axle mount uses BDS's ultra-durable large-forged flex end and jam nut. Using a forged housing with large 1-1/4-nch x 12 threaded shank, a single sided snap ring and 1-piece flex ball, the flex ends are capable of up to 15 degrees of misalignment in either direction. At the frame end the bar uses a durometer specific polyurethane bushing and free floats in the traction bar utilizing a pair of dual stage internal compression springs and UHMW polyurethane bearings.

Features & Benefits

  • Adjustable axle wrap control using dual-stage resistance springs.
  • Full floating traction bar design will not bind throughout the full range of wheel travel and/or hinder suspension articulation.
  • Spring preload can be adjusted on the vehicle without disassembling the traction bar.
  • Traction bar ends are greaseable and rebuildable.
  • Mounting brackets are bolt-on, only requiring minor drilling for frame mount installation.
  • Does NOT fit Dually models
  • Will ONLY fit crew cab long bed (8ft)
  • Will NOT fit standard cab, extended cab, or models with 6.5ft beds
