2 Inch Lift Kit | Chevy Trailblazer or GMC Envoy (02-09)

Brand: BDS
SKU: BDS168H
Kit Component List

×
$477.85
Subtotal: $477.85

I have read the Important Notes and Verified my Vehicle Fitment

2 Inch Lift Kit | Chevy Trailblazer or GMC Envoy (02-09)

2 Inch Lift Kit | Chevy Trailblazer or GMC Envoy (02-09)

$477.85

2 Inch Lift Kit | Chevy Trailblazer or GMC Envoy (02-09)

$477.85
Shock Option: NX2 Nitro Series

Level out your 2002-2009 Chevy Trailblazer or GMC Envoy by installing this 2-inch lift kit from BDS. Specially designed for the GM SUV's, this 2" lift kit is engineered for additional tire clearance and improved performance without overextending the suspension or driveline angles at full suspension droop. To prevent maxing out ball joints or CV damage, BDS gets around this issue with a one piece mount increases the pre-load of the strut as well as increases the over all length of the strut assembly.

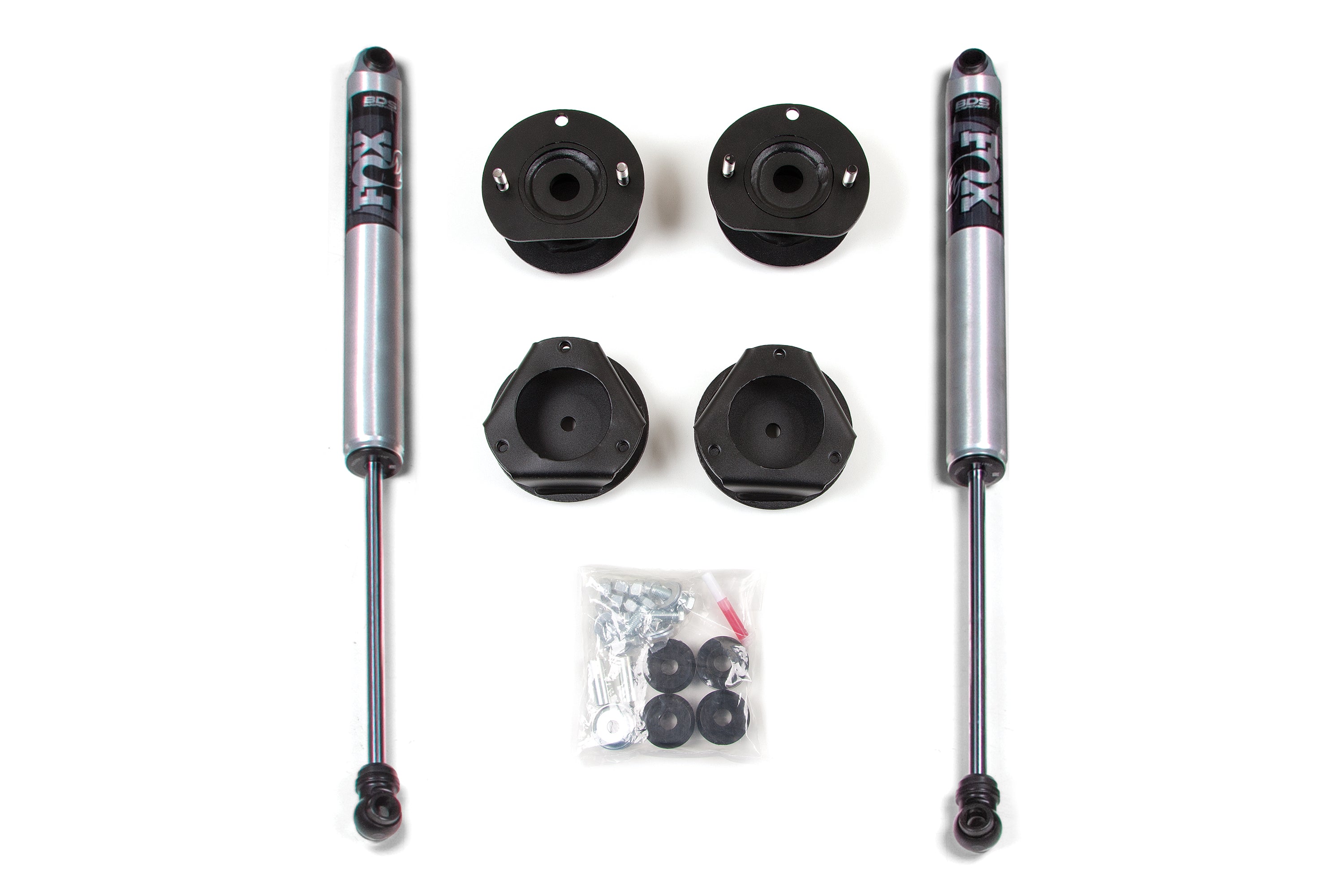

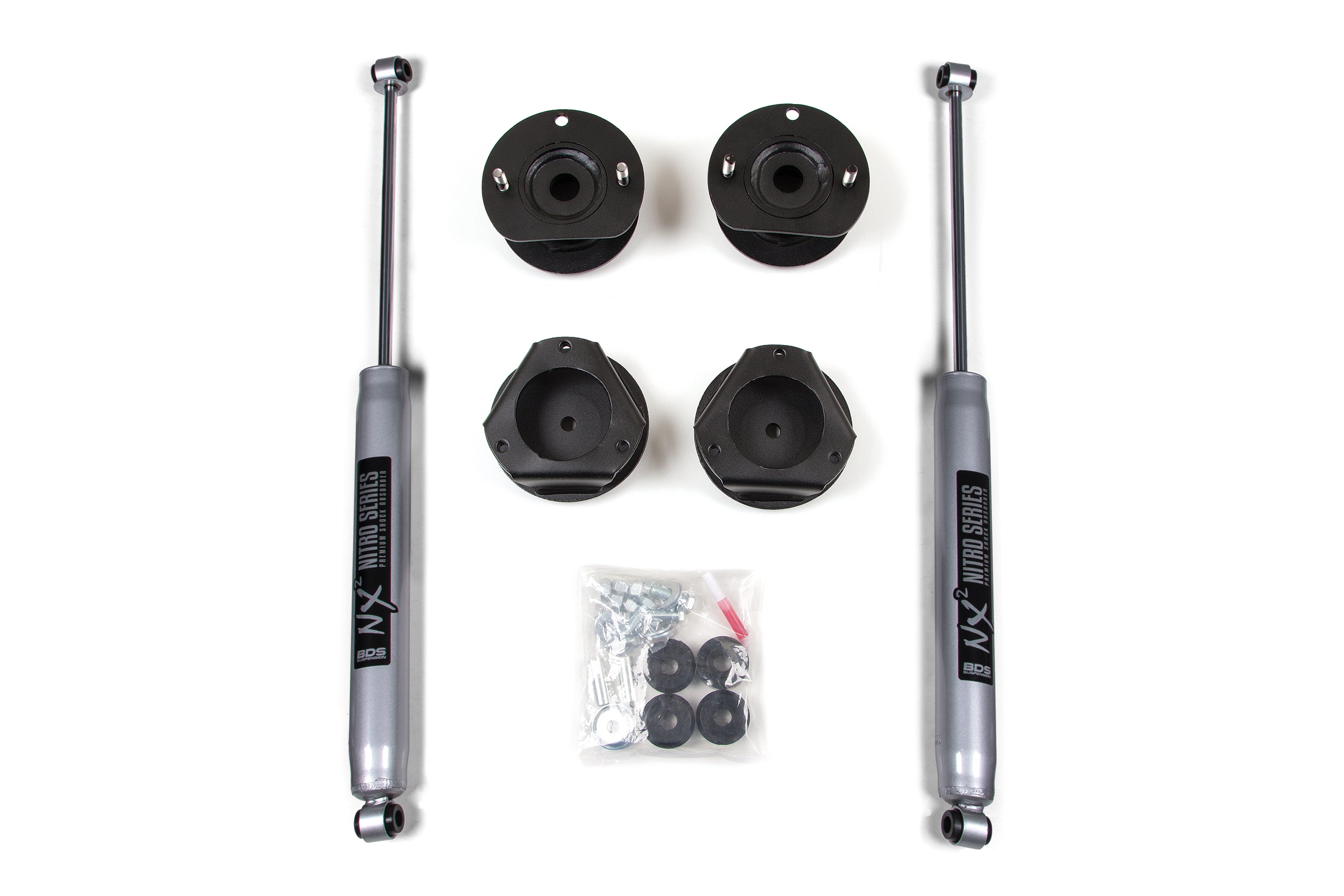

The lift kit includes steel top mount strut spacers, rear coil spring mounts and custom-tuned NX2 Nitro or FOX Performance series shocks.

Features & Benefits

  • Easy, 100% Bolt-on installation
  • Maintains factory like ride quality
  • Standard NX2 Nitro shocks with vehicle-specific valving for better control
  • Upgrade to FOX 2.0 Performance Series shocks for maximum performance on and off-road

Recommended Tires & Wheels

(Trimming may be required)

  • 30 x 9.5 with 17 x 7 and in. Backspace

Shock Option

NX2 Nitro Series

  • Nitrogen-charged
  • Twin-tube design
  • 10-stage velocity-sensitive valving
  • Dual-welded ends for increased strength
  • 1-3/8-inch high-flow piston
  • Self-lubricating seals
  • Silver powder coat finish

FOX 2.0 Performance Series

  • 2-inch Impact extruded aluminum body
  • Internal floating piston (IFP) monotube design
  • CNC machined 6061-T6 aluminum mounting ends
  • Massive 5/8-inch hard chrome plated heat-treated alloy steel shaft
  • Race-developed high-flow piston design
  • Application-specific valving to maximize performance
  • Long-lasting clear anodized finish
  1. Strut compressor required for installation
  2. Will not fit vehicles equipped with a rear air-ride system
  3. Will fit Ext and XL models
  4. Front only kit available as part #121201
